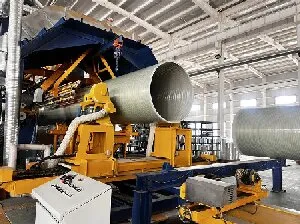

CFW Continuous Filament Winding Production Line – Product Introduction

CFW Continuous Filament Winding Production Line – Product Introduction

The CFW Continuous Filament Winding Production Line is an advanced, fully automated manufacturing system engineered for high-volume, intelligent production of high-performance fiber-reinforced polymer (FRP) pipes, pressure vessels, and structural tubular products. Integrating servo-driven motion control, closed-loop precision tension management, and multi-axis synchronized winding technology, the line delivers seamless end-to-end processing-from fiber creeling and resin impregnation to continuous winding, in-line curing, and CNC-controlled cut-to-length.

Key Advantages:

Ultra-Precise Dynamic Tension Control: 12-channel independent tension sensing with real-time PID regulation ensures tension stability within ±1.5%, guaranteeing uniform fiber distribution and interlaminar density;

High Process Flexibility: Supports circumferential, helical, multi-angle, and variable-ply winding patterns; rapidly adapts to pipe diameters from Φ300 mm to Φ3000 mm and wall thicknesses from 6 mm to 50 mm;

Intelligent In-Line Monitoring: Equipped with infrared thermal imaging for cure monitoring, laser profilometry for dimensional inspection, and AI-powered defect recognition-achieving winding path accuracy <0.3 mm, ovality ≤0.5%, and real-time degree-of-cure measurement error <2%;

Green & Energy-Efficient Design: Modular electric heating/UV dual-mode curing system reduces energy consumption by 38% vs. conventional ovens; VOC emissions comply with GB 31571–2015;

Smart Factory Integration: Native OPC UA support enables plug-and-play connectivity with MES/ERP systems, providing full traceability of process parameters, OEE analytics, remote diagnostics, and predictive maintenance.

Deployed globally across municipal water supply & drainage, petrochemical infrastructure, wind turbine tower liners, and offshore engineering applications, a single CFW line achieves an annual output capacity of 120,000 running meters (standard Φ1200 mm pipe) with consistent yield ≥99.2%.
